PROMOTION - The Smart Way

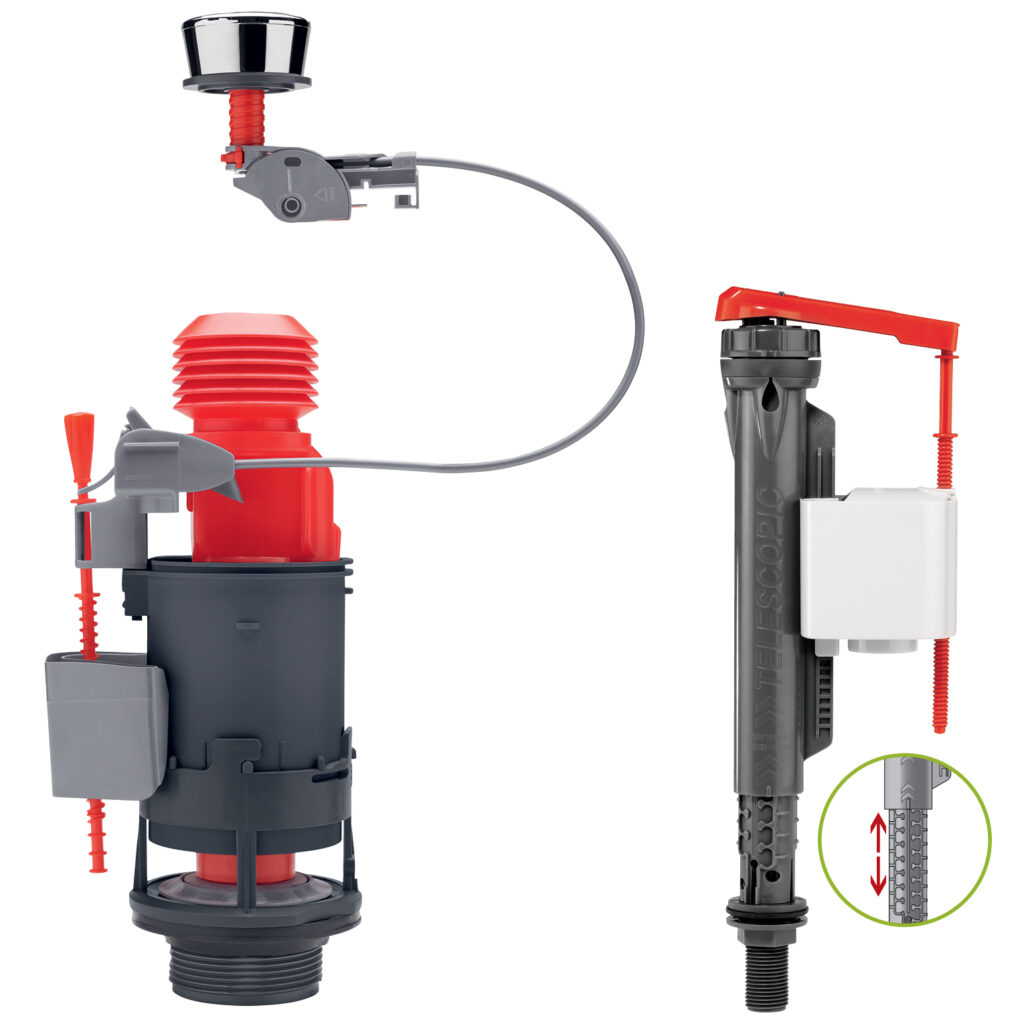

MW2 CLICK EXTENDABLE + JOLLYFILL Extendable Dual flush kit

TESTED 20000 CYCLESDELAYED ACTION

The MW2 Flush Mechanism range now includes an improved clip on dual flush push button and cable for easy installation.

The new and improved flush mechanisms can be identified by the dark grey housing on the flush mechanism that includes recycled material.
The extendable overflow ensures that the MW2 flush mechanism will fit in a wide range of cisterns.

The MW2 dual flush button can save up to 21 liters of water per day per person*.

All WIRQUIN mechanisms come with a 10 Year Warranty
Conform and or comply to SABS, NF (French Standard), WRAS (UK Standards), DIN (German Standards) and EN (European Standards)
Flush valve tested to 250 000 cycles
Flush valve tailpiece available in 50mm and 60mm

JOLLYFILL range 0,1 to 16 bar working pressure
Inlet Valve available in 1/2 inch and 3/8 inch

Mechanisms available as components and complete kits
Complete Cistern Kit variations, Closed couple low level BIBO, Low level SISO, Semi closed Couple BIBO

Warranty 10 Years
Water Saving Dual Flush
Water Saving Delayed Action
NF
WRAS
SKU:
Barcode:
Category:

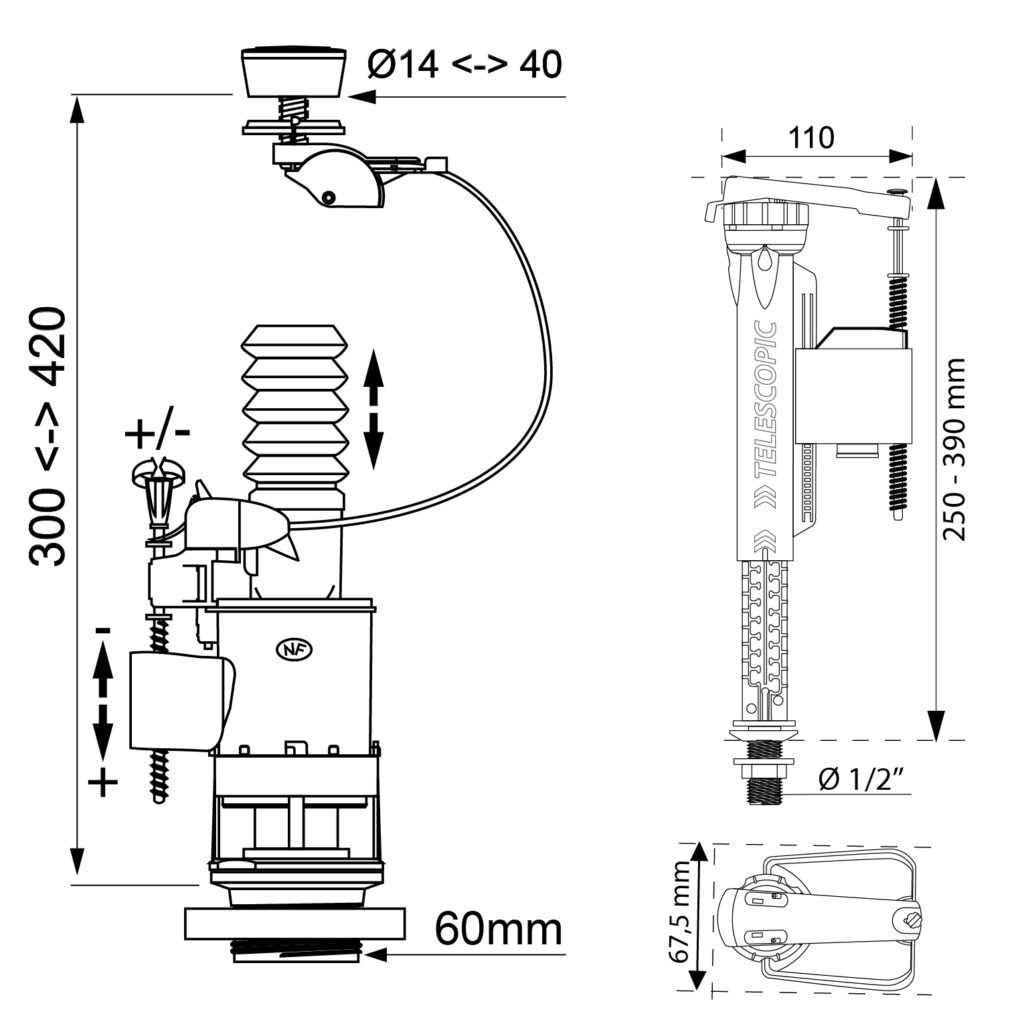

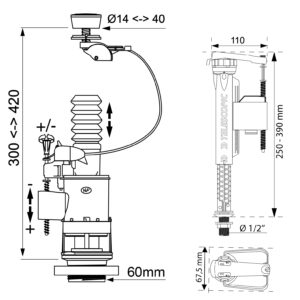

Technical Specifications


Height of cisterns (mm): 300 to 420

Diameter of cover hole (mm): 14 to 46

Mechanism base (mm): 60

Water saving: Dual flush CLIP on button

Control system: Cable control

Top or Front mechanism: Top or Front

Adjustable overflow (240 to 270mm)

Inlet end: 1/2 inch plastic

Filling rate at 0,1 bars: 3.1 L/min

Functioning range: 0.1 up to 16 bar

Resistant to peaks of pressure: Up to 20 bars

Water saving delayed inlet: Yes

Patented system against unreasonable tightening

Ultra quiet (17 decibels)

Anti-siphoning

Eliminates water hammer
